Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 Blog Index - Contents







See what R125 are for sale now on Ebay uk


need parts for you R125 try here on Ebay uk or here on Amazon UK




Yamaha YZF R125 top end barrel cylinder piston removal
 buy a haynes workshop manual from here




Removing the top end is easy the only thing to remeber is how to set timing on rebuild which is not difficult .





Yamaha YZF R125 top end barrel cylinder piston removal

Remove the rocker cover bolts

Yamaha YZF R125 top end barrel cylinder piston removal

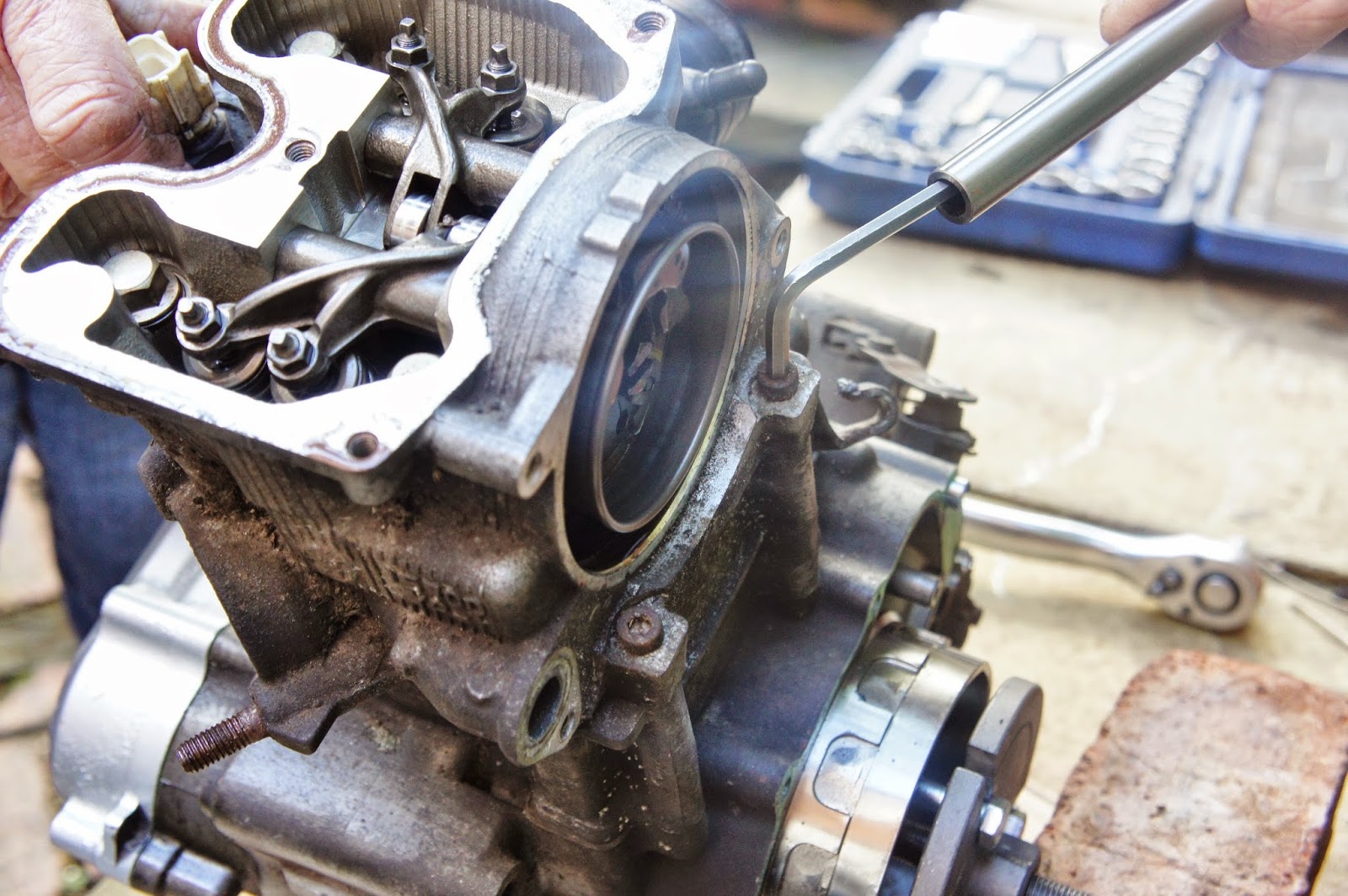

this exposes the main cylinder head bolts

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Remove water pump see our post here on that

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal


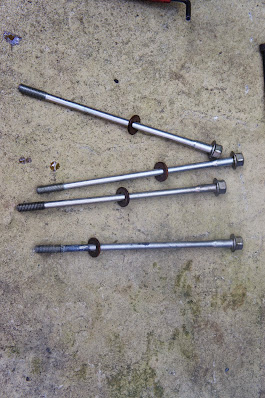

these 2 allen head bolts need to be removed as well

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

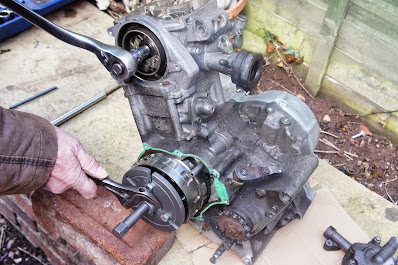

Here im holding the flywheel bolt to undo the timing chain
bolt .

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

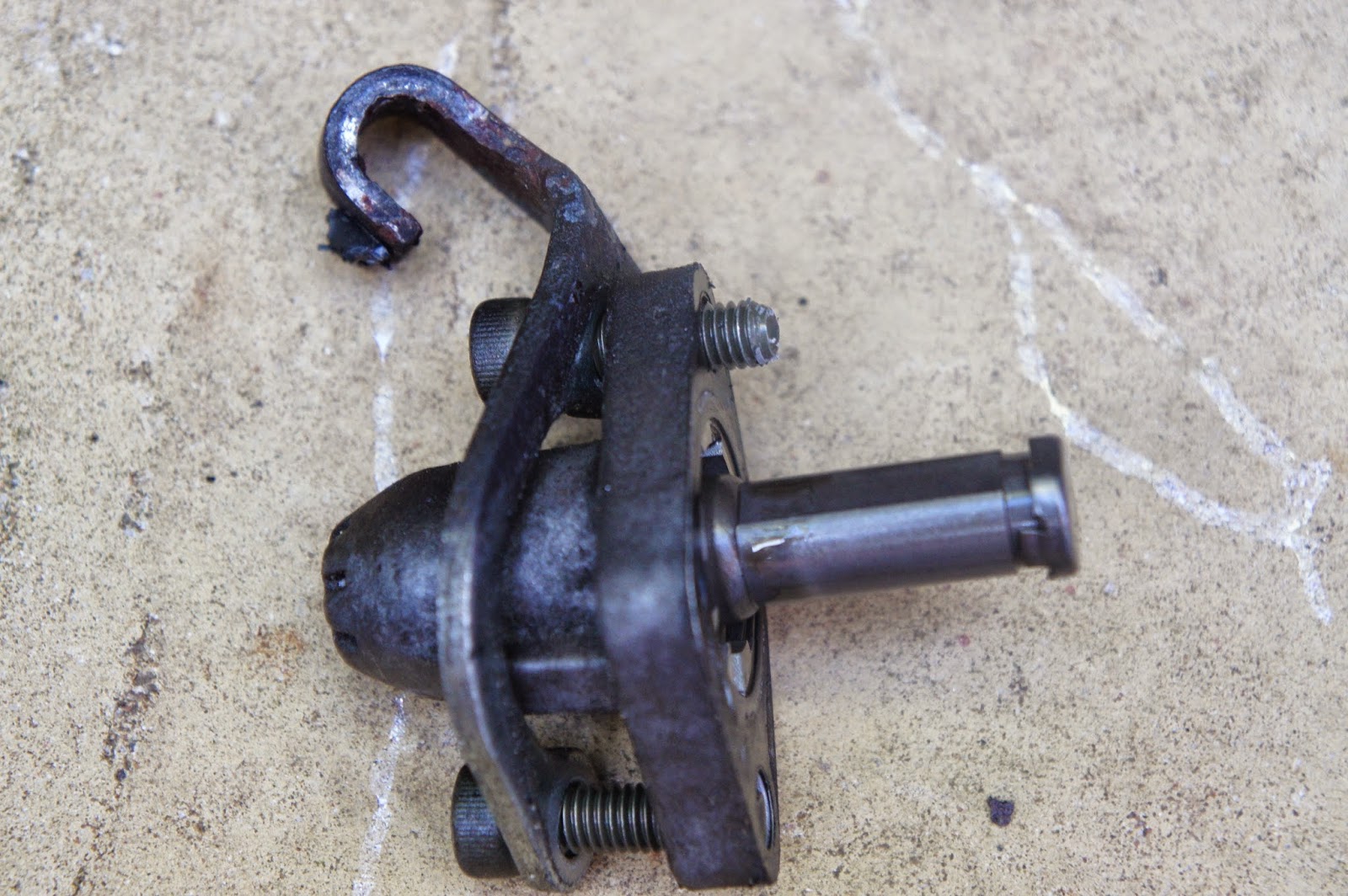

below the timing chain tensioner is losened and then  removed

Yamaha YZF R125 top end barrel cylinder piston removal

you can now free the timing chain i hold it with string to avoid dropping it into
engine

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

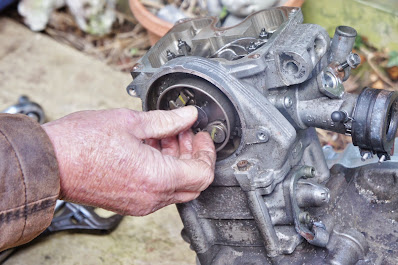

ive now removed the timing chain sprocket as i needed to
and im undoing the top cylinder head main bolts

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal


pulling head free while controlling chain

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

now remove chain guides

Yamaha YZF R125 top end barrel cylinder piston removal

and prepare cylinder barrel for removal

Yamaha YZF R125 top end barrel cylinder piston removal

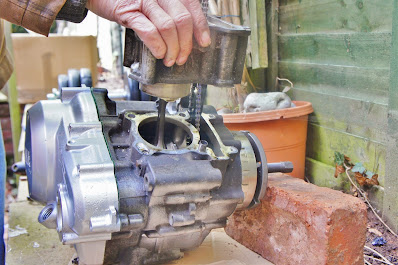

again control chain while lifting of barrel

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal

Yamaha YZF R125 top end barrel cylinder piston removal
