YZF-R125 Battery Not Charging? The Ultimate Reg/Rec & Stator Diagnostic Guide

⚠️ Safety Message

Working on a running engine carries a risk of injury from moving parts (like the chain or hot exhaust). When testing AC voltage, ensure your multimeter leads are clear of the rear wheel. Never disconnect the battery while the engine is running, as this can cause a massive voltage spike that will permanently destroy your ECU.



---

1. The Quick "Running" Test

Before pulling the bike apart, check the DC voltage at the battery terminals with the engine running.

• Engine OFF: ~12.6V (Healthy battery).

• Engine IDLE: 13.0V – 13.5V.

• At 5,000 RPM: 13.8V – 14.7V.

• The Failure: If you see less than 13V or more than 15V at 5,000 RPM, your Regulator/Rectifier is faulty.

---

2. The Stator Test (AC Output)

If the battery isn't charging, you need to know if the Stator is actually producing power. Locate the three white wires (in a gray plug) coming from the left side of the engine.

• The Test: Unplug the connector. Set your meter to AC Volts. Measure between any two of the three pins (1-2, 2-3, 1-3).

• Result at Idle: ~20V AC.

• Result at 5,000 RPM: 60V – 70V AC.

• Ground Test: Set meter to Ohms (Ω). Touch one probe to a white wire and the other to the engine block. You should see OL (Open Loop). If you see any resistance, the stator is "shorted to ground" and must be replaced.

---

3. The Regulator/Rectifier "Diode Test"

If the stator passes the test above, the fault is in the Reg/Rec. Unplug the unit and set your multimeter to the Diode symbol (▶️|).

Multimeter Red (+)	Multimeter Black (-)	Expected Result
Any White Pin	Red Output Pin	0.4V – 0.6V
Red Output Pin	Any White Pin	OL (Open Loop)
Black (Ground) Pin	Any White Pin	0.4V – 0.6V
Any White Pin	Black (Ground) Pin	OL (Open Loop)

• What it means: A diode is a one-way valve. If you get a reading in both directions (or no reading at all), the internal bridge has failed.

---

4. Pro-Tip: The "MOSFET" Upgrade

If your OEM regulator has failed, don't just buy another cheap "standard" unit.

• The Problem: The standard R125 unit is a "Shunt" type, which gets extremely hot by dumping excess electricity as heat.

• The Fix: Upgrade to a MOSFET Regulator (like the Shindengen FH020AA). These run significantly cooler, are much more reliable, and provide a more stable 14.4V to your battery, extending its life.

---

Common R125 Electrical Fault Symptoms

• The "Dashboard Reset": Your clock resets to 12:00 every time you start the bike (Low battery voltage).

• The "High RPM Stutter": The bike runs fine at low revs but coughs or loses power at 7,000+ RPM (Weak spark due to low voltage).

• Bulb Failure: If you are constantly blowing headlight bulbs, your regulator is "overcharging" (sending 16V+), which will eventually fry your ECU.

hen looking for a MOSFET regulator/rectifier on eBay for the YZF-R125, you have to be careful. Many listings use the word "MOSFET" as a buzzword for cheap, standard units. To get the actual performance benefits (cooler running and stable voltage), you want to look for specific kits or high-quality brands.

Here are the best eBay options available in 2026:

1. The "Gold Standard" Universal Upgrade (FH020AA) Buy Here

If you are willing to do a bit of wiring, searching for the Shindengen FH020AA or FH012AA is the best move. These are the genuine MOSFET units used on bigger superbikes like the R1.

• eBay Search Term: FH020AA MOSFET Regulator Kit

• Price Range: £20 – £45 (Unbranded/Chinese) or £80+ (Genuine Shindengen).

• Why buy: These handle much more power than a 125cc bike needs, meaning they will never overheat.

• Note: You will likely need a "wiring harness adapter" to match the R125 plugs, or you can "hard-wire" it directly to the stator and battery for a more reliable connection.

Buy Here

2. The "Plug-and-Play" MOSFET (RMStator) Buy here

If you don't want to cut wires, look for the RMStator brand. They make units specifically for the R125 that use MOSFET technology but keep the original Yamaha plug style.

• eBay Search Term: RM30506H MOSFET YZF-R125

• Price Range: £45 – £65.

• Why buy: It’s a direct replacement for the OEM unit. You simply unscrew the old one and plug this in. It has a much better heat-sink design than the original Yamaha factory part.

Buy here

3. Budget "Pattern" Replacements (Arrowhead / MPW) Buy here

If you just need the bike back on the road cheaply, these are the common reliable "pattern" brands found on eBay UK.

• eBay Search Term: Arrowhead Regulator YZF-R125 or MPW YZF-R125 Regulator

• Price Range: £15 – £30.

• Why buy: These are standard "Shunt" type (not MOSFET), but they are well-made and better than the anonymous £10 units.

Buy here

Buyer's Tip: How to Spot a "Fake" MOSFET

On eBay, many sellers lie. To check if a unit is actually MOSFET:

1. Look at the Back: Real MOSFET units usually have a metal/epoxy flat back rather than being hollow or filled with rough black resin.

2. The Connector: Genuine Shindengen units (like the FH020AA) have two distinct, weather-proof grey and black plugs. If it has one single plastic block with 5 pins, it is almost certainly a standard shunt-type.

Yamaha YZF-R125 Sensor Testing & Wiring Guide

Gemini said

Safety First: When testing electrical components, ensure the bike is in a well-ventilated area and the engine is cool unless the test specifically requires it to be running. Improperly probing a live ECU connector can cause a short circuit; always use "back-probes" or thin pins rather than shoving multimeter leads directly into the harness

If your dashboard shows a fault code, use these specific multimeter tests to confirm if the sensor itself is dead or if you have a wiring issue.

---

1. Coolant Temperature Sensor (ECT) - Code 21

This sensor tells the ECU how much fuel to spray and when to turn on the fan.

• Location: Threaded into the cylinder head.

• Testing: Set multimeter to Ohms (Ω).

• Expected Values (Cold/Hot):

  • 20°C (68°F): 2,200 – 2,800 Ω

  • 80°C (176F): 270 – 380 Ω

• Verdict: If you see "OL" (Open Loop) or 0 Ω, the internal thermistor is broken.

2. Crank Position Sensor (Pickup Coil) - Code 12

If this fails, the bike will not have a spark and will not start.

• Wiring Colors: Usually Grey and Black/Blue (at the stator harness plug).

• Testing: Measure resistance across these two wires.

• Expected Value: 248 – 372 Ω (approximate).

• Verdict: Resistance outside this range means the coil is faulty and needs replacing (usually comes with the stator).

3. Throttle Position Sensor (TPS) - Code 15

Crucial for smooth acceleration. A "dead spot" here causes the bike to jerk.

• The "Sweep" Test: With the sensor connected and ignition ON (engine off), back-probe the signal wire.

• Testing: Set multimeter to DC Volts.

• Expected Values:

  • Closed Throttle: ~0.6V to 0.9V

  • Wide Open: ~3.8V to 4.5V

• Verdict: The voltage should rise smoothly as you twist the throttle. Any sudden jumps or drops to 0V indicate a "glitch" in the sensor's internal track.

4. Oxygen (O2) Sensor - Code 24

Controls the fuel-to-air ratio.

• The Heater Test: Most O2 sensors fail because the internal heater dies.

• Wiring Colors: Locate the two wires of the same color (usually two White or two Black wires).

• Expected Value: 10 – 16 Ω.

• Verdict: No reading (infinite resistance) means the heater is burnt out; the sensor will never reach the correct temperature to read the exhaust gases.

Yamaha YZF-R125 ECU Wiring & Pin-Out Guide

The ECU (Electronic Control Unit) is the "brain" located under the rider's seat. Knowing the wire colors allows you to test sensors directly at the source, which helps identify if a fault is in the sensor itself or the wiring harness.

---

Main ECU Wire Color Cheat Sheet

Wire Color	Primary Function	Connected To
Red/White	Main Power (+12V)	Battery / Main Relay
Black	Main Ground (-)	Chassis / Battery Negative
Orange	Ignition Signal	Ignition Coil (Primary)
Grey	Fuel Injector Signal	Fuel Injector
Black/Blue	Sensor Ground	Shared by TPS, ECT, and Air Pressure
Blue	5V Reference Power	Power supply to all 5V sensors
Blue/White	RPM / Tachometer	Dashboard Display
Yellow/Blue	TPS Signal	Throttle Position Sensor
Green/White	ECT Signal	Engine Coolant Temp Sensor
White/Red	Crank Signal (+)	Pickup Coil (Stator area)
White/Blue	Crank Signal (-)	Pickup Coil (Stator area)
Yellow/Black	Lean Angle Signal	Tip-over / Lean Angle Sensor

Diagnostic Pro-Tips

• The 5V Reference (Blue Wire): If multiple sensors (TPS, Air Pressure, etc.) fail at once, check the Blue wire at the ECU. It should provide a steady 5.0V. If it reads 0V or 12V, the ECU is likely damaged or there is a short in the harness.

• Ground Continuity: Most electrical issues on the R125 are caused by a "bad ground." Ensure the Black wire has 0.0 ohms of resistance to the negative battery terminal.

• Corrosion Check: The ECU plug is prone to moisture buildup. If you see green "fuzz" on the pins, clean them with electrical contact cleaner and a soft toothbrush

Yamaha YZF-R125 Fault Code Guide

Safety First: If the Engine Management Light (EML) is flashing while the engine is running, pull over safely and turn off the bike. A flashing light often indicates a "critical" fault—such as a misfire that could damage the catalytic converter or a sensor failure that could cause the engine to seize.

The YZF-R125 features an on-board diagnostic system. When a fault is detected, the orange engine light will either stay solid or flash in a specific sequence to tell you what's wrong.

How to Read the "Blink" Codes

If you don't have an OBD2 scanner, you can read the flashes on the dashboard:

• Long Flashes (1.5 seconds): These represent the first digit (tens).

• Short Flashes (0.5 seconds): These represent the second digit (units).

• Example: Two long flashes followed by four short flashes = Code 24.

---

Common Fault Code Meanings

Code	Component	Common Symptom
12	Crankshaft Position Sensor	Bike won't start; no spark.
13	Intake Air Pressure Sensor	Poor idling; "chugging" under load.
14	Intake Air Pressure (Hose)	Often just a loose or cracked rubber vacuum hose.
15	Throttle Position Sensor (TPS)	Hesitation when twisting the throttle.
21	Coolant Temperature Sensor	Fan stays on constantly or bike runs very "rich."
24	Oxygen (O2) Sensor	Poor fuel economy; surging at constant speeds.
30	Lean Angle Sensor	Bike thinks it has fallen over; cuts ignition.
33	Ignition Coil	Misfiring; bike feels like it's "limping."
41	Lean Angle Sensor (Wiring)	Open or short circuit in the tip-over sensor.
42	Speed Sensor / Neutral Switch	Speedometer stays at 0 or bike stalls when put in gear.
46	Power Supply (Charging System)	Abnormal voltage; usually a failing Stator or Regulator.

Pro Tip: Resetting the Light

On many R125 models, the light will only turn off once the physical fault is fixed and the bike has completed 3 "clean" heat cycles (starting from cold, reaching operating temp, and cooling back down). If the light stays on after a repair, double-check your connector clips!

The Yamaha YZF-R125 Community Knowledge Base

Gemini said

Safety First: When using advice from forums or unofficial guides, always cross-reference torque settings and fluid capacities with the official Yamaha Service Manual. Incorrect information found online can lead to mechanical failure or safety risks.

For any 125cc owner, having access to the right communities can save you hundreds in garage labor. Here is a curated list of the most trusted resources for the R125.

---

1. Official Manuals & Parts Catalogs

• Official Yamaha Owner's Manuals: The best starting point for every rider. It contains your basic maintenance schedules, fuse locations, and fluid types.

• Yamaha R125 Service Manual (PDF via Scribd): The "Bible" for mechanics. This is the 400+ page document dealers use, detailing every single engine teardown and wiring diagram.

• Bike-Parts-Yamaha Parts Diagrams: Use this to find exact part numbers. The exploded diagrams are incredibly helpful for seeing how a specific assembly (like the clutch or gearbox) fits together.

---

2. Primary Forums & Communities

• r/MotoUK (Reddit): A highly active community for UK-based riders. While not R125-exclusive, it is the best place to ask about winter-proofing, insurance tips, and local mechanical help for the R125.

• YamahaR125.com: One of the oldest dedicated forums for this model. Although less active than it once was, the archives contain years of threads on common "Gremlin" fixes.

• Facebook Groups: Search for "Yamaha YZF-R125 Owners" or "YZF-R125 UK Community." These groups are the fastest way to get a "real-time" answer if you're stuck in your garage with a specific problem.

---

3. Top YouTube Repair Channels

• Roky Rode: Excellent, modern 4K tutorials specifically for the R125. His "Full Service" and "Valve Clearance" videos are the gold standard for visual learners.

• EvolutionMotovlogs: Great for visual modification guides, exhaust installs, and performance upgrades.

• Iron Pulse / Stephen Oneill: Focused on practical, "no-nonsense" repairs, including air filter changes and dash upgrades for newer Mk3 models.

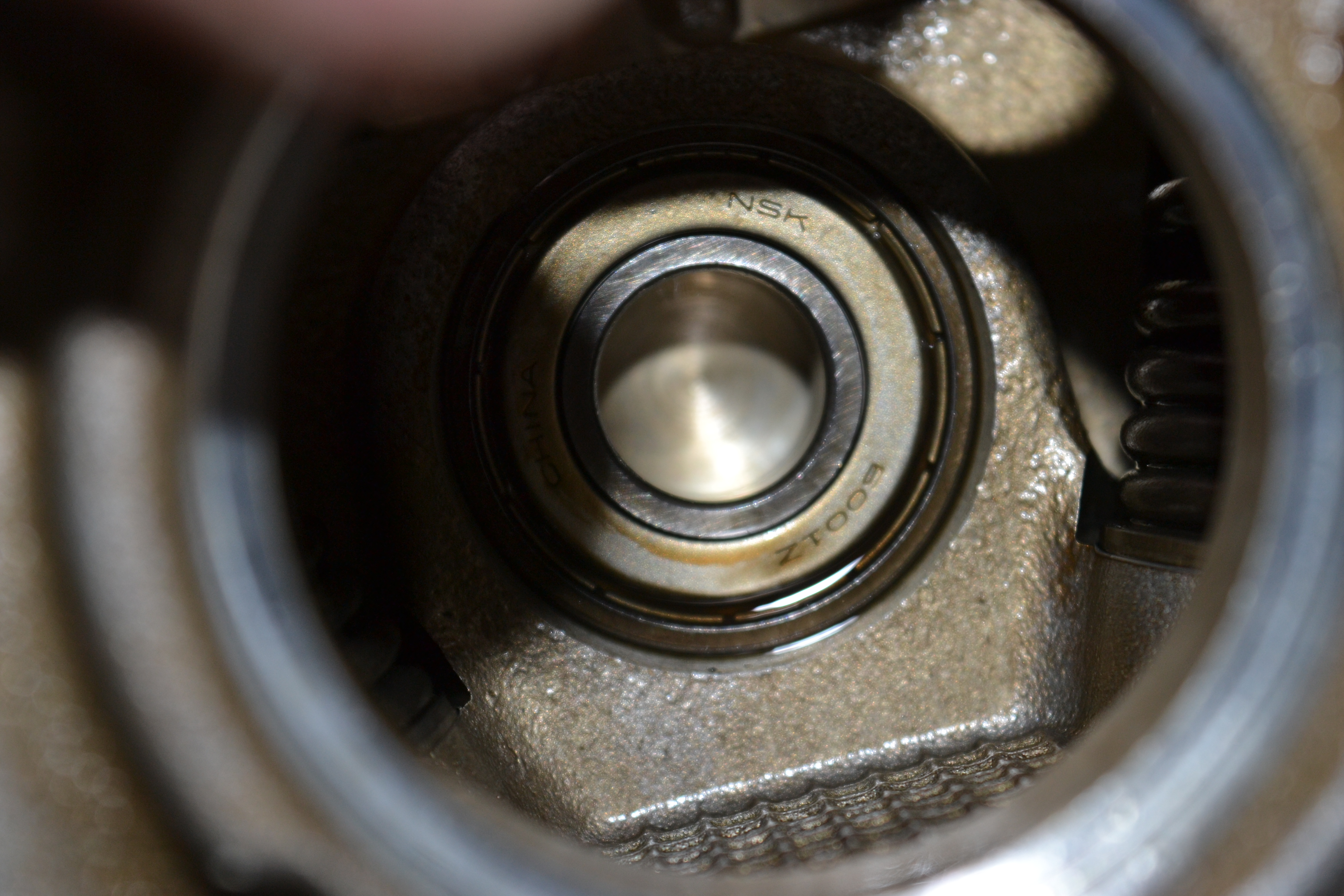

Yamaha YZF-R125 Maintenance & Troubleshooting

Safety First: Always perform maintenance on a flat, stable surface using a paddock stand or center stand. Never attempt to adjust the drive chain or clean the sprocket area while the engine is running, as this poses a severe risk of finger entrapment and injury.

This guide compiles essential specs, service intervals, and common "pain points" for the Yamaha YZF-R125 (2008–2026). Whether you’re a daily commuter or a weekend track rider, keeping these parameters in check is vital for the longevity of this high-revving 125cc engine.

---

1. Essential Service Specifications

Component	Specification
Engine Oil	SAE 10W-40 (JASO MA/MA2)
Oil Capacity	0.95L (Drain only) / 1.0L (With filter change)
Spark Plug	NGK CR9E (Gap: 0.7–0.8mm)
Coolant	Ethylene glycol (50/50 mix); ~1.0L total capacity
Tire Pressure	Front: 26-28 PSI / Rear: 29-33 PSI (adjust for pillion)

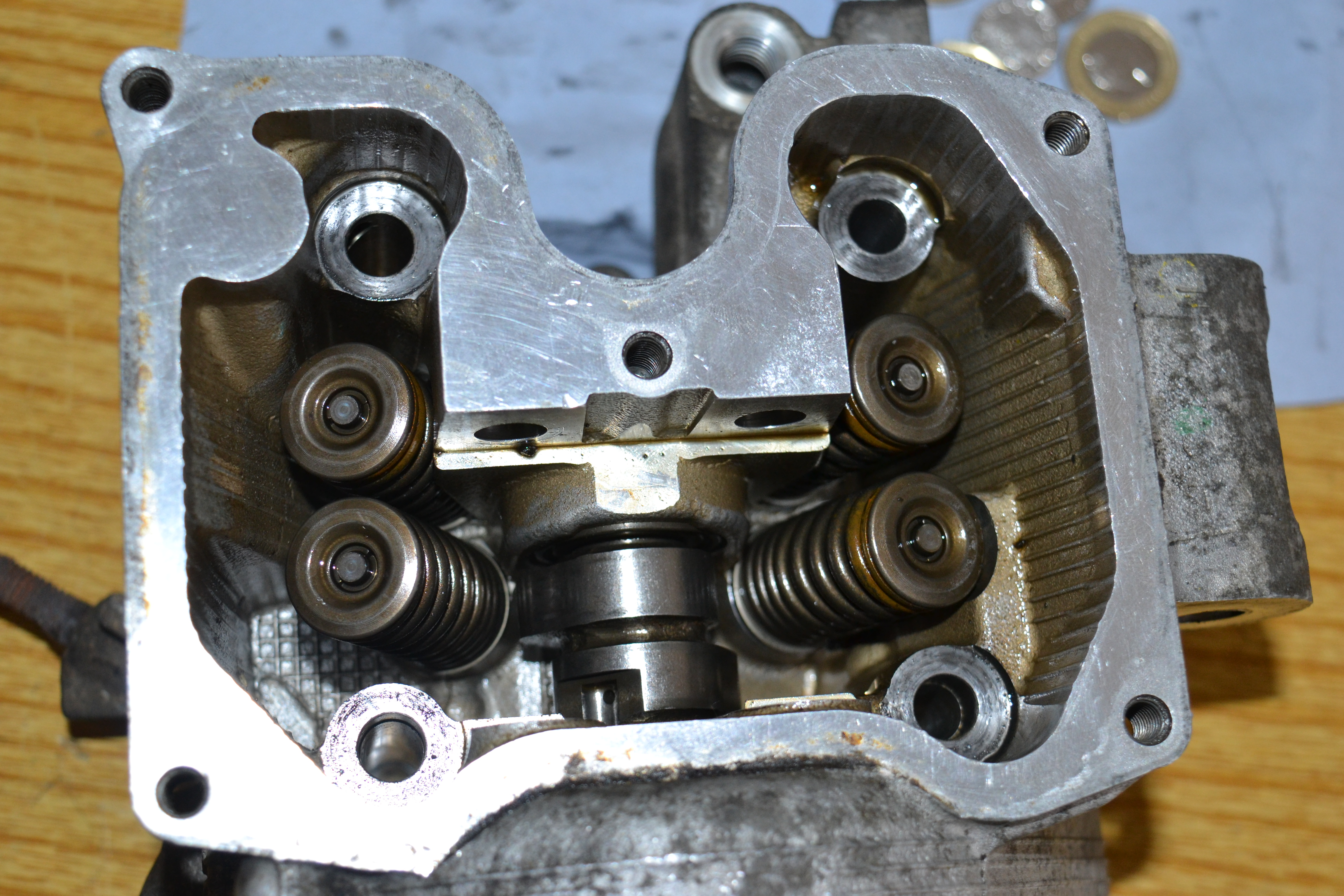

Valve Clearance	Intake: 0.10–0.14mm / Exhaust: 0.20–0.24mm (Cold)
Drive Chain Slack	30.0–40.0 mm

---

2. The Maintenance "Golden Rules"

• The 1,800-Mile Check: Unlike larger bikes, the R125 has a small oil capacity. Owners and mechanics strongly recommend checking the oil level weekly. High-revving single-cylinder engines can burn oil faster than expected; running dry is the #1 cause of engine failure on this model.

• The Chain Routine: Clean and lube every 500–700 miles. Because it’s a 125cc, power loss from a "sticky" or unlubricated chain is very noticeable.

• Warm-Up Period: Always allow the engine to warm up for 60 seconds before riding. This ensures the oil has reached the top-end (valves and cam) before you start hitting high RPMs.

---

3. Troubleshooting Common Issues

Electrical & Starting

• The "Clicking" Start: If you hear a rapid clicking when pressing the starter, your battery voltage is too low to engage the solenoid. Check your battery terminals for corrosion—they often loosen over time.

• Erratic Speedo: Often caused by a loose main plug behind the dashboard or moisture in the speed sensor (located near the front sprocket).

Engine & Performance

• Poor Idling/Stalling: Usually points to a dirty Throttle Body or a failing Idle Air Control (IAC) valve. Before replacing parts, try a high-quality fuel system cleaner.

• False Neutrals: If the bike keeps slipping out of gear, inspect the Gear Selector Shaft (as detailed in previous guides) or ensure your clutch cable free play is set to 10–15mm.

Cooling System

• High Temp Light: The R125 cooling system is small. Check the radiator fins for stones/debris and ensure the coolant level in the expansion tank (near the front right fairing) is between the Min/Max lines.

---

4. Major Service Intervals

• Every 3,500 Miles: Full Oil & Filter change.

• Every 7,500 Miles: Replace Spark Plug, inspect Air Filter, and check Valve Clearances.

• Every 2 Years: Flush Brake Fluid and Replace Coolant.

Pro Tip: Keep an eye on the swingarm pivot bolt and suspension linkage. These are prone to seizing if the bike is ridden in wet, salted winter conditions. A quick spray of ACF-50 or similar protectant can save you a massive headache later.

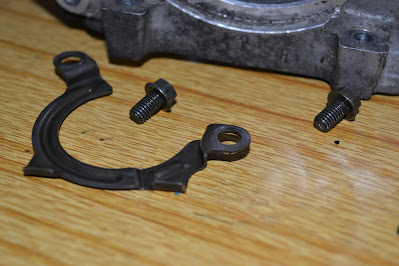

Yamaha YZF-R125 Common Torque Settings

This table covers the most frequent maintenance tasks. Figures are for dry threads unless specified otherwise.

Component	Torque (Nm)	Torque (ft-lb)	Notes
Oil Drain Bolt (Sump)	23 Nm	17 ft-lb	Do not over-tighten!
Front Wheel Axle Nut	115 Nm	83 ft-lb
Front Axle Pinch Bolt	21 Nm	15 ft-lb
Rear Wheel Axle Nut	190 Nm	137 ft-lb	High torque; check pins/marks
Front Brake Caliper Bolts	35 Nm	25 ft-lb	Check for secure mounting
Rear Brake Caliper (Front bolt)	27 Nm	20 ft-lb
Rear Brake Caliper (Rear bolt)	12 Nm	9 ft-lb
Front Sprocket Nut	125 Nm	92 ft-lb	Use locking washer
Rear Sprocket Nuts	100 Nm	72 ft-lb	Tighten in a star pattern
Spark Plug	12.5 Nm	9 ft-lb	Hand tighten first
Handlebar (Clip-on) Pinch Bolt	32 Nm	23 ft-lb
Top Yoke Pinch Bolt	26 Nm	19 ft-lb

---

Important Notes for the R125

• The "Lubricated Threads" Rule: If you apply copper grease or anti-seize to a bolt (like the axle or drain bolt), reduce the target torque by roughly 20-25%. Lubrication makes it easier to turn the bolt, which means you could accidentally stretch the threads if you stick to the "dry" torque figure.

• Rear Axle: The 190 Nm setting for the rear axle is quite high for a small bike. Ensure your rear wheel adjusters are perfectly aligned before the final tighten to keep the chain tracking straight.

• Oil Filter Cover: If your model has the 3-bolt filter cover, these only need 10 Nm. They are very easy to snap if you use a large wrench.
