⚠️ SAFETY FIRST: Ensure the engine is completely cool and the bike is secure on a paddock stand before beginning. Drain the engine oil into a suitable container and dispose of it responsibly.
Learn how to correctly remove and disassemble the Yamaha YZF-R125 clutch. This guide covers the entire teardown process, from removing the outer casing to extracting the clutch basket, ensuring you don't miss critical small components.
Key Technical Highlights:
Cover Removal: Tips for removing the clutch side cover bolts and freeing the casing from the engine.
Spring Tension: Instructions on the "cross-pattern" method—undoing bolts four turns at a time—to safely release spring pressure.
Plate Sequencing: A guide to noting the specific order of friction plates and metal spacers for a successful rebuild.

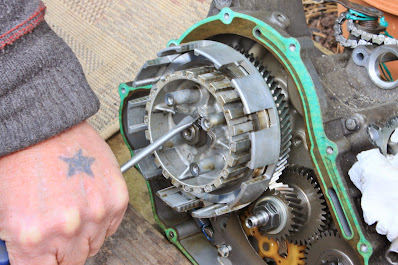

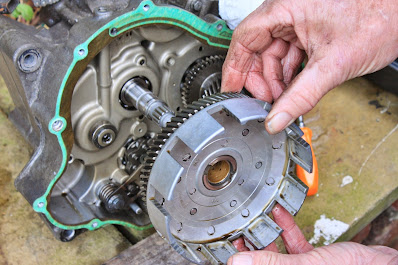

Clutch Basket: How to flatten the lock washer and use an impact gun or holding tool to remove the main clutch boss nut.
Component Alert: Critical warning about the clutch actuator pin ball bearing, which often falls out unnoticed during disassembly.
Torque Specifications & Technical Data
To assist with the teardown and eventual reassembly, keep these figures handy:
Clutch Boss Nut: 70 Nm (50 ft·lb) — Requires flattening the lock washer before removal.
Clutch Spring Bolts: 10 Nm (7.2 ft·lb) — Loosen gradually in a star pattern to avoid warping the pressure plate.
Clutch Cover Bolts: 10 Nm (7.2 ft·lb)
Oil Drain Bolt: 20 Nm (14 ft·lb)
Pro Tip: When you remove the clutch plates, keep them in their exact order by sliding a zip-tie through the center of the stack. This ensures that if you are reusing the plates, they go back in the same orientation, preventing new "dragging" issues caused by different wear patterns.
