⚠️ SAFETY FIRST: When testing the charging system, you will be working near a running engine and live electrical components. Keep loose clothing and hair away from the chain and hot exhaust. Do not touch the Regulator/Rectifier while the engine is running—it is designed to bleed off excess heat and can reach temperatures high enough to cause severe burns.In 2021, we looked at the basics of the charging loop. By 2026, the YZF-R125's charging system has become a key area of "Maintenance Debt." Because this bike uses a permanent magnet alternator, the system is always working at 100% capacity. If you've added heated grips or USB chargers, your "Margin of Safety" for electrical overhead is even slimmer.
1. The Three-Phase Test (The Stator)
If your battery isn't charging, you need to check the "R&D" center of the bike: the stator.
The Test: Unplug the three white wires coming from the engine. With the engine running, use a multimeter on AC Volts.
The Spec: You should see roughly 20V AC at idle, rising to 50V-70V AC as you increase the revs. Check all three combinations of the wires. If one is significantly lower, the stator is "burnt out" and needs replacing.
2. The "Burnt Connector" Syndrome
Before buying parts, check the plastic plug between the stator and the Regulator/Rectifier.
The 2026 Reality: Over time, these connectors develop resistance, get hot, and literally melt. A melted plug is a "Safety Message" that your wiring is failing. Often, cutting out the plug and soldering the wires directly (using heat-shrink) restores the charging system perfectly.
3. Regulator/Rectifier Heat Sink
The "Reg/Rec" turns that AC power into DC for your battery.
The Check: If the battery voltage stays at 12V while the engine is running, but the stator AC tests are fine, the regulator is dead.
Pro-Tip: In 2026, many riders upgrade to a MOSFET regulator. These run much cooler than the old "Shunt" style and provide a more stable "Income" of power to the battery.

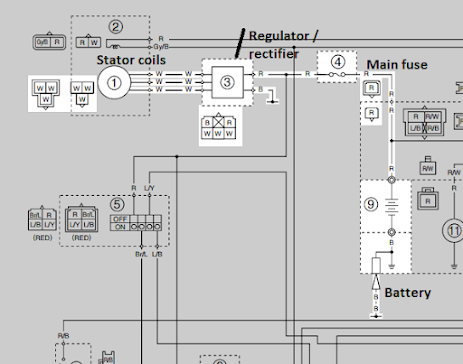

R125 charging system
Not much at all to these circuits , just the rotor stator that generators the electric current AC current , this AC current is then rectified to DC current and regulated to 14v DV by the regulator rectifier, It passes the main fise on its way to the battery where is charges the battery.
How the generator works on an R125 video below a basic explination on how it works and testing the stator coils.
How to remove the flywheel and stator R125
How to test an R125 electrical stator coils to see if its good and capable of charging the battery.
