If you are struggling to find neutral, or if the gear lever feels "loose" and doesn't snap back to center, the problem is likely internal to the gear selector mechanism. This guide covers how to inspect and replace the gear selector shaft on the Yamaha YZF-R125.
If you are struggling to find neutral, or if the gear lever feels "loose" and doesn't snap back to center, the problem is likely internal to the gear selector mechanism. This guide covers how to inspect and replace the gear selector shaft on the Yamaha YZF-R125.
Common Symptoms of Failure
The "Limp" Lever: The shifter stays down or up after a gear change, indicating a broken return spring.
Oil Leaks: A puddle of oil directly under the shift lever usually points to a perished shift shaft oil seal.
Difficulty Shifting: A bent shaft (often from a drop or crash) causes the internal "claws" to misalign with the shift drum.
The "Limp" Lever: The shifter stays down or up after a gear change, indicating a broken return spring.
Oil Leaks: A puddle of oil directly under the shift lever usually points to a perished shift shaft oil seal.
Difficulty Shifting: A bent shaft (often from a drop or crash) causes the internal "claws" to misalign with the shift drum.
Removal & Inspection
To access the selector shaft, you must remove the clutch cover and the entire clutch assembly.
The Shaft Claws: Once the clutch is out, you can slide the selector shaft through from the left side. Inspect the two "claws" at the end of the shaft; if they are rounded or chipped, they won't grab the shift drum pins effectively.
The Return Spring: This small spring is what centers the lever. It is a common point of failure and can be replaced easily once the shaft is removed.
Shaft Straightness: Roll the shaft on a flat glass surface. If it wobbles, it is bent and must be replaced to ensure smooth gear transitions.
To access the selector shaft, you must remove the clutch cover and the entire clutch assembly.
The Shaft Claws: Once the clutch is out, you can slide the selector shaft through from the left side. Inspect the two "claws" at the end of the shaft; if they are rounded or chipped, they won't grab the shift drum pins effectively.
The Return Spring: This small spring is what centers the lever. It is a common point of failure and can be replaced easily once the shaft is removed.
Shaft Straightness: Roll the shaft on a flat glass surface. If it wobbles, it is bent and must be replaced to ensure smooth gear transitions.
Pro-Tip for Reinstallation
When sliding the new (or cleaned) shaft back through the engine casings, wrap a bit of electrical tape over the splined end. This protects the delicate lips of the new oil seal from being sliced by the sharp metal teeth as the shaft passes through. Remove the tape once the shaft is seated, then re-attach your external shift linkage.
Gear selector shaft lever replacement removal
When sliding the new (or cleaned) shaft back through the engine casings, wrap a bit of electrical tape over the splined end. This protects the delicate lips of the new oil seal from being sliced by the sharp metal teeth as the shaft passes through. Remove the tape once the shaft is seated, then re-attach your external shift linkage.

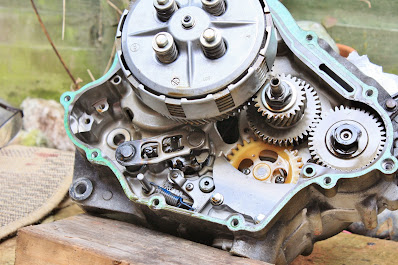

Remove cover ( engine side )
Hi does the clutch basket not need to be removed to replace the shift shaft
ReplyDeleteno it should sneak past
