Yamaha YZF R125 fuel pump removal refitting - fuel pump motor replacement .







Easy job all you need is a 10mm spanner and a screwdriver .









undo the 10mm retaining bolts





becareful of the float and lever arm when removing from tank

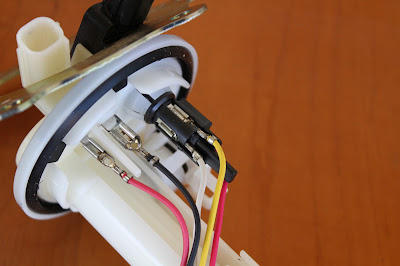

disconnect the 2 power cables to the pump






to do this you need to insert screwdriver where i show below


you now have to slip the plastic housing to access the pumps location
and pull free from housing


to replace fuel filter remove via below connector



refit i  reverse order and make sure wire connector aligns properly


slowly and a little at a time do each nut in turn untill it goes tight and continue
untill 4nm torque has been reached on each nut .
